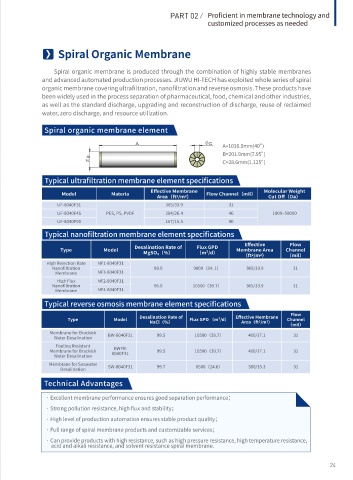

Page 31 - THE GLOBAL LEADER IN MEMBRANE SEPARATION INDUSTRY

PART 02 Proficient in membrane technology and
customized processes as needed

Organic Membrane Spiral Organic Membrane

Spiral organic membrane is produced through the combination of highly stable membranes
and advanced automated production processes. JIUWU HI-TECH has exploited whole series of spiral
organic membrane covering ultrafiltration, nanofiltration and reverse osmosis. These products have
been widely used in the process separation of pharmaceutical, food, chemical and other industries,
as well as the standard discharge, upgrading and reconstruction of discharge, reuse of reclaimed
water, zero discharge, and resource utilization.

Spiral organic membrane element

A=1016.0mm(40”)
B=201.9mm(7.95”)
C=28.6mm(1.125” )

Typical ultrafiltration membrane element specifications

Effective Membrane Molecular Weight
Model Materia Flow Channel（mil）
Area（ft 2 /m 2 ） Cut Off（Da）
UF-8040F31 365/33.9 31
UF-8040F46 PES, PS, PVDF 284/26.4 46 1000~50000
UF-8040F90 167/15.5 90
Typical nanofiltration membrane element specifications

Effective Flow
Desalination Rate of Flux GPD
Type Model Membrane Area Channel
MgSO 4 （%） （m³/d）
（ft 2 /m 2 ） （mil）
High Rejection Rate NF1-8040F31
Nanofiltration 98.0 9000（34. 1） 365/33.9 31
Membrane NF3-8040F31
High Flux NF2-8040F31
Nanofiltration 96.0 10500（39.7） 365/33.9 31
Membrane NF4-8040F31
Typical reverse osmosis membrane element specifications

Flow
Desalination Rate of Effective Membrane
Type Model Flux GPD （m³/d） Channel
NaCl（%） Area（ft 2 /m 2 ）
（mil）
Membrane for Brackish
BW-8040F31 99.5 10500（39.7） 400/37.1 31
Water Desalination
Fouling Resistant
BWFR-
Membrane for Brackish 99.5 10500（39.7） 400/37.1 31
8040F31
Water Desalination
Membrane for Seawater
SW-8040F31 99.7 6500（24.6） 380/35.3 31
Desalination
Technical Advantages
Spiral Organic Hollow fiber Organic Tubular · Excellent membrane performance ensures good separation performance；
Membrane membrane Membrane · Strong pollution resistance, high flux and stability；

(UF/NF/RO) column membrane Non-woven Tubular Membrane · High level of production automation ensures stable product quality；
curtain membrane Sintered Tubular Membrane
· Full range of spiral membrane products and customizable services；
(UF) (MF/UF)
· Can provide products with high resistance, such as high pressure resistance, high temperature resistance,
acid and alkali resistance, and solvent resistance spiral membrane.
