Ceramic Membrane Tubular ceramic membrane

The inorganic ceramic membrane is a precision filter material with a porous structure with a
high-temperature sintering of inorganic ceramic materials such as alumina, titanium oxide, and
zirconia. It consists of porous support layers, transition layers and membrane layers, and is
asymmetric distribution. The filtering accuracy covers micro filter, ultrafiltration and small pores
(≥2nm), and the membrane can be widely used in fields such as pharmaceutical, food, chemical
and other production process separation and special water treatment.

Concentrate
Ingredient

permeate

Supporting body Filter layer Membrane layer
Membrane filtration principle diagram

Tubular ceramic membrane element specification parameters

Section
Circular、Hexagon
geometry
12mm、25mm、30mm、
Outer diameter
40mm、50mm etc.
Number of 1、7、9、19、23、
channels 37、61、91 etc.

Channel 2.0mm、2.5mm、3.0mm、4.0mm
diameter
6.0mm、8.0mm etc.
Membrane
500mm、1178mm、1200mm etc.
length
Single
0.02~1.2 m 2
membrane area
Separation
2~5000nm
accuracy
2
0.5m Ceramic membrane experiment equipment

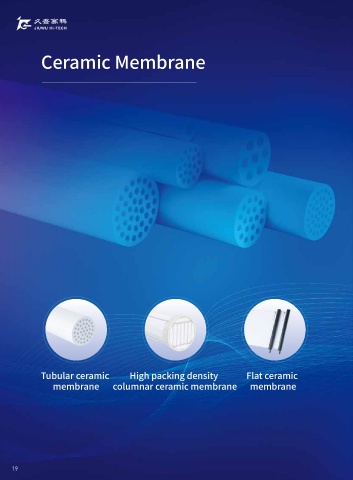

Tubular ceramic High packing density Flat ceramic Technical advantages
membrane columnar ceramic membrane membrane

· High infiltration flux, long service life; · On demand customization, personalized services;

· Intelligent production, lower cost; · High support body strength, stable membrane layer;
· Inorganic sealing, safe and stable; · The pore diameter distribution is narrow and the
separation accuracy is high.
