Page 28 - THE GLOBAL LEADER IN MEMBRANE SEPARATION INDUSTRY

PART 02 Proficient in membrane technology and
customized processes as needed

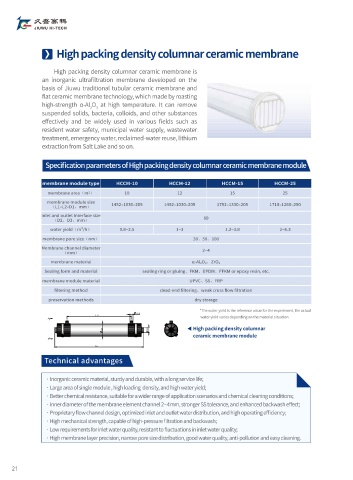

High packing density columnar ceramic membrane Flat ceramic membrane

High packing density columnar ceramic membrane is Flat ceramic membrane is an asymmetric plate-shaped
an inorganic ultrafiltration membrane developed on the membrane with porous structure made by inorganic
basis of Jiuwu traditional tubular ceramic membrane and ceramic materials such as Al O through a special process.
2 3
flat ceramic membrane technology, which made by roasting The filtration accuracy includes microfiltration and
high-strength α-Al O at high temperature. It can remove ultrafiltration, and usually the filtration form is suction
2 3
suspended solids, bacteria, colloids, and other substances filtration. Flat ceramic membranes not only have the
effectively and be widely used in various fields such as excellent performance characteristics of inorganic
resident water safety, municipal water supply, wastewater membranes, but also are more cost-effective in cost of
treatment, emergency water, reclaimed-water reuse, lithium construction and operating, which making them widely
extraction from Salt Lake and so on. applicable in multiple fields such as membrane bioreactors
(MBRs), integrated processing equipment, municipal
Specification parameters of High packing density columnar ceramic membrane module sewage treatment, industrial wastewater treatment, water
purification, industrial separation.
membrane module type HCCM-10 HCCM-12 HCCM-15 HCCM-25
membrane area（m 2 ） 10 12 15 25 Specification parameters of flat ceramic membrane element
membrane module size 1452×1030×205 1452×1030×205 1752×1330×205 1710×1260×250
（L1×L2×D1，mm） Type FCM20 FCM25 FCM50
inlet and outlet interface size 60 Overall dimensions（L×W×T，mm） 600×145×6 500×250×6 1000×250×6
（D2、D3，mm）
Weight of membrane element（kg） 0.7 1 1.9
water yield（m³/h） 0.8~2.5 1~3 1.2~3.8 2~6.3
Effective membrane area（m 2 ） 0.174 0.25 0.5
membrane pore size（nm） 30、50、100
*Other specifications can be customized
Membrane channel diameter 2~4
（mm） Technical advantages
membrane material α-Al 2 O 3 、ZrO 2
Sealing form and material sealing ring or gluing、FKM、EPDM、FFKM or epoxy resin, etc.
· Narrow pore size distribution, high separation accuracy; · Other specifications can be customized;
membrane module material UPVC、SS、FRP
· Long operation life and stronger anti-pollution ability; · High reuse rate , environmentally friendly;
filtering method dead-end filtering、weak cross flow filtration
· Strong regeneration performance, strong impact load · Good tolerance, wider application, easy
preservation methods dry storage
resistance; cleaning.
*The water yield is the reference value for the experiment, the actual
water yield varies depending on the material situation
Specification parameters of flat ceramic membrane module
High packing density columnar
ceramic membrane module
Membrane
Membrane Number Membrane area Water yield Length * Width * Height Weight
element
module type (piece) （m 2 ） （m³/d） （mm） （kg）
specification
Technical advantages FCMM-2 FCM-25 10 2.5 2~5 300×320×1200 15
FCMM-6 FCM-20 34 6 7~14 710×570×450 32
· Inorganic ceramic material, sturdy and durable, with a long service life;
FCMM-12 FCM-15 68 12 8~10 710×570×600 64
· Large area of single module , high loading density, and high water yield;
FCMM-25 FCM-50 50 25 15~35 920×320×1800 200
· Better chemical resistance, suitable for a wider range of application scenarios and chemical cleaning conditions;
FCMM-50 FCM-50 100 50 30~70 1720×320×1800 310
· Inner diameter of the membrane element channel 2~4mm, stronger SS tolerance, and enhanced backwash effect;
· Proprietary flow channel design, optimized inlet and outlet water distribution, and high operating efficiency; FCMM-100 FCM-50 200 100 60~140 1720×720×1800 630
· High mechanical strength, capable of high-pressure filtration and backwash;
FCMM-200 FCM-50 400 200 120~280 1720×720×3250 1185
· Low requirements for inlet water quality, resistant to fluctuations in inlet water quality;
• The size of the membrane module can be customized, and the water yield is the experimental
· High membrane layer precision, narrow pore size distribution, good water quality, anti-pollution and easy cleaning.
reference value，the actual water yield varies depending on the material situation

21 22
