PART 02 Proficient in membrane technology and
customized processes as needed
Hollow Fiber Membrane Organic Tubular Membrane

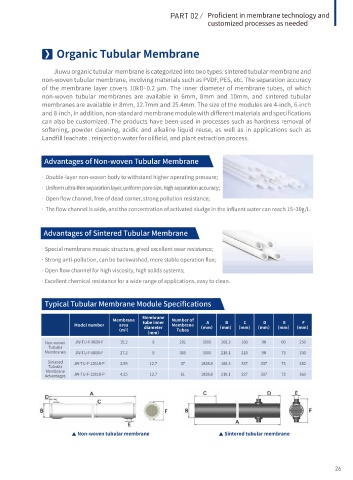

Jiuwu hollow fiber membranes are prepared using Jiuwu organic tubular membrane is categorized into two types: sintered tubular membrane and
non-woven tubular membrane, involving materials such as PVDF, PES, etc. The separation accuracy
high-grade PVDF resin as raw material, based on advanced
of the membrane layer covers 10kD~0.2 μm. The inner diameter of membrane tubes, of which
production processes and hydrophilic modification
non-woven tubular membranes are available in 6mm, 8mm and 10mm, and sintered tubular
technology, with a nominal pore size of 30nm. We have membranes are available in 8mm, 12.7mm and 25.4mm. The size of the modules are 4-inch, 6-inch
developed two modules, Ultrafiltration and MBR, with and 8-inch, in addition, non-standard membrane module with different materials and specifications
can also be customized. The products have been used in processes such as hardness removal of
excellent performance. The product has been widely used
softening, powder cleaning, acidic and alkaline liquid reuse, as well as in applications such as
in fields such as river purification, reclaimed water reuse,
Landfill leachate , reinjection water for oilfield, and plant extraction process.
industrial wastewater pretreatment, municipal wastewater
treatment, drinking water, and seawater desalination.
Advantages of Non-woven Tubular Membrane
Hollow Fiber Membrane—Specification parameters of curtain membrane element · Double-layer non-woven body to withstand higher operating pressure;
· Uniform ultra-thin separation layer, uniform pore size, high separation accuracy;
Total Membrane Number of Size Outlet/inlet Water treatment
Model Material
area （m 2 ） Elements (L*W*H, mm) size capacity （m³/d）
· Open flow channel, free of dead corner, strong pollution resistance;
M960 960 48 2600×1400×2410 190~770
· The flow channel is wide, and the concentration of activated sludge in the influent water can reach 15~30g/L.
M720 720 36 Top: 304 stainless 2000×1400×2410 DN65 140~580
steel, ABS resin
E480 480 24 1400×1400×2410 95~380
Frame: 304
E240 240 12 stainless steel 1300×1400×2410 45~190
DN40 Advantages of Sintered Tubular Membrane
E180 180 12 1300×700×1910 35~145
· Special membrane mosaic structure, gived excellent wear resistance;
Hollow Fiber Membrane—Specification parameters of cylindrical membrane element · Strong anti-pollution, can be backwashed, more stable operation flux;
· Open flow channel for high viscosity, high solids systems;
Total Membrane L L1 L2 L3 D W1 W2
Model
area（m 2 ） （mm） （mm） （mm） （mm） （mm） （mm） （mm） · Excellent chemical resistance for a wide range of applications, easy to clean.
JW™-PVDF-2660 33 1860 1500 1610 1710 165 125 250
JW™-PVDF-2860 51 1860 1500 1630 1820 225 180 342
Typical Tubular Membrane Module Specifications
JW™-PVDF-2880 77 2360 2000 2130 2320 225 180 342
Membrane
Membrane Number of
tube inner A B C D E F
Model number area Membrane
diameter （mm） （mm） （mm） （mm） （mm） （mm）
（m 2 ） Tubes
（mm）
Non-woven JW-TU-F-8630-F 15.2 8 201 3000 168.3 160 90 60 250
Tubular
Membranes JW-TU-F-8830-F 27.2 8 365 3000 219.1 210 90 73 330
Hollow fiber column
membrane module Sintered JW-TU-F-12618-P 2.59 12.7 37 1828.8 168.3 337 337 73 282
Tubular
Membrane
JW-TU-F-12818-P 4.25 12.7 61 1828.8 219.1 337 337 73 363
Advantages
Technical advantages
· Small membrane pore size and high porosity； · Strong chemical resistance and stability；
· Excellent pollution resistance； · Advanced Packaging Technology；
· Excellent mechanical properties； · Customizable services.
Non-woven tubular membrane Sintered tubular membrane
